DOWELS & PINS

Intafast are able to supply solid dowel pins, and extractable dowel pins both in metric and imperial sizes. In addition we can source or manufacture to your requirements to the relevant DIN/ISO specifications.

We also offer a range of coiled pins, cotter pins, and spring tension (slotted) pins in a range of materials and sizes.

Dowel Pins to DIN 7/ISO 2338 stockist supplies Parallel dowel pin DIN 7/ISO 2338
  • Free cutting steel
  • Stainless steel A1/A2
  • Stainless steel A4
  • Bespoke sizes available to your drawings
Extractable Dowel Pin Parts & Supplies to DIN 7979D/ISO 8735 Parallel dowel pin - with internal thread hardened DIN 7979 D/ISO 8735 A
  • Through hardened & ground steel (m6) -100Cr6, through hardened to 58-62HRc.
Dowel Pin to DIN 6325 in hardened & ground steel Parallel dowel pin (Hardened - tolerance m6 & h6*) DIN 6325/ISO 8734-A
  • Through hardened & ground steel (m6) – 100Cr6, through hardened to 58-62HRc.
  • *h6 tolerance limited on sizes
  • Bespoke sizes available to your drawings

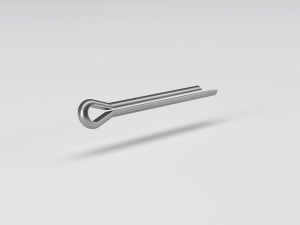

Split Cotter Pin Supplies to DIN 94/ISO 1234/BS1574 Split pin (cotter pin) DIN 94/ISO 1234
  • Steel
  • Stainless steel A2
  • Stainless steel A4
  • Brass
  • Copper
Spirol Pin Coiled - Standard Duty to ISO 8750/DIN 7343 Spirol pin (coiled) - Standard duty ISO 8750/DIN 7343
  • Spring steel – 420-560 HV30
  • Stainless steel ≈ ISO 8750/DIN 7343

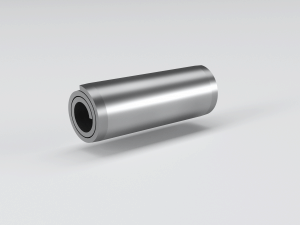

Spirol Pin Coiled - Heavy Duty to ISO 8748/DIN 7344 Spirol pin (coiled) - Heavy duty ISO 8748/DIN 7344
  • Spring steel – 420-560 HV30
Slotted Spring Pin - Light Duty ISO 13337/DIN 7346 Slotted spring pin - Light duty ISO 13337/DIN 7346
  • Spring steel – 420-560 HV30
Heavy Duty Slotted Spring Pins & Part Supplies to ISO 8752 Slotted spring pin - Heavy duty ISO 8752/DIN 1481
  • Spring steel – 420-560 HV30
  • Stainless steel – ≈ ISO 8752/DIN 1481
Taper Pins & Part Supplies to DIN 1B DIN 1A DIN 7977 DIN 7978 Taper pin ISO 2339 B/DIN 1 B
  • Free cutting steel
  • Stainless steel A1
Linch Pins & Part Supplies in Mild Steel, Zinc & Yell Stainless Steel A2 Linch pins
  • Mild steel – zinc & yellow finish
  • Stainless steel 304
